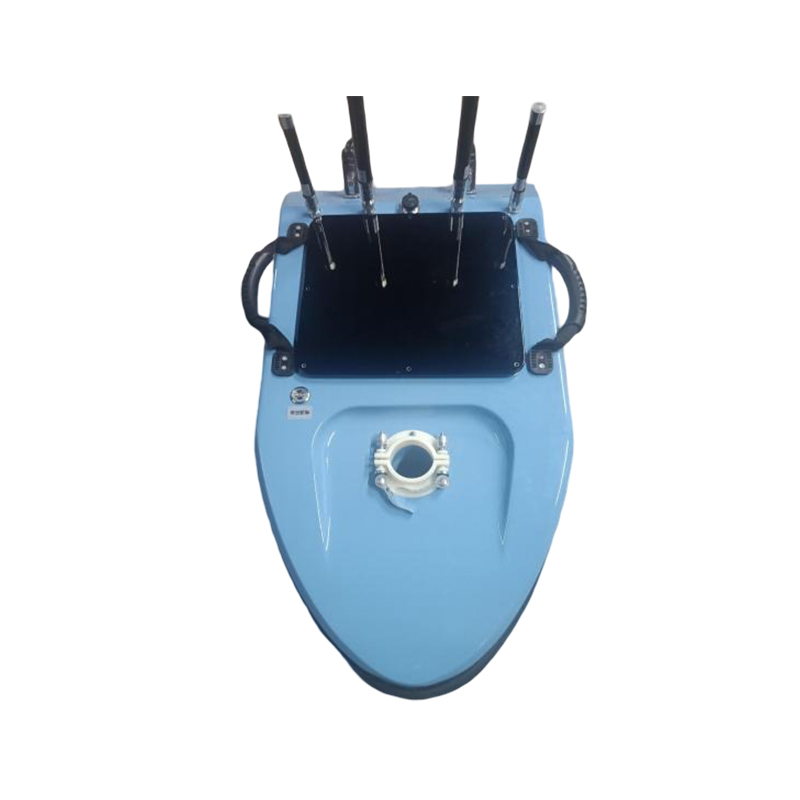

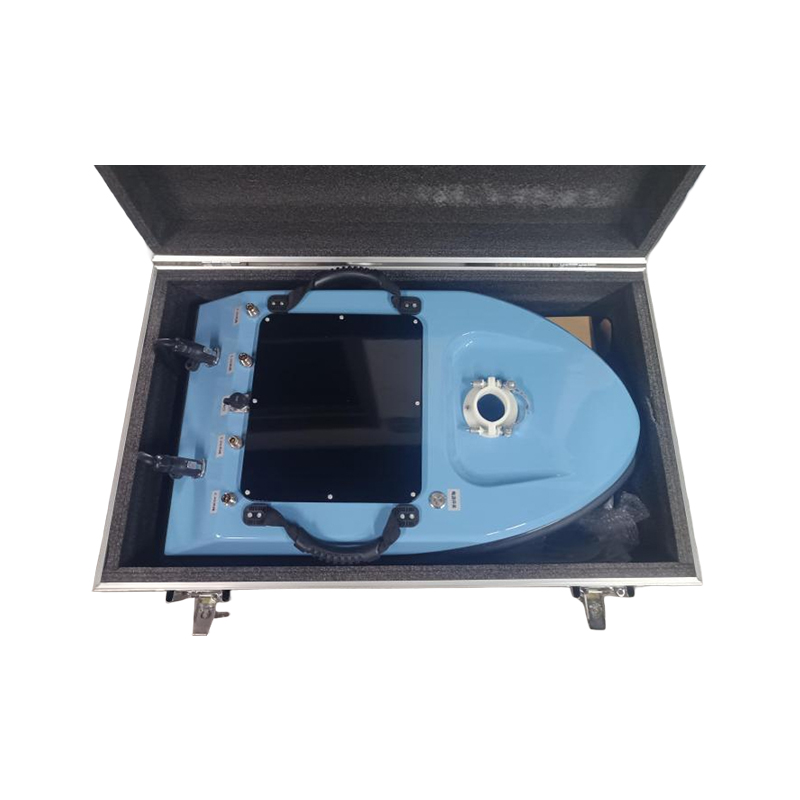

Intelligent Bathymetric Unmanned Vessel JW-803

Hull:

Hull size

820 (length) * 550 (width) * 280 (height) mm

Hull material

Polyester carbon fiber

Hull dead weight

5.8Kg

Maximum load

20Kg

Wind and wave resistance level

Level 2 wind, level 2 wave

Ship type

M-type bottom

Depth sounder installation hole diameter

55mm

Waterproof and dustproof

IP66

Communication:

Base station communication

Radio & Network (Base Station + Mobile Station)

Data Communication

Bridge & Radio

Remote control communication

2.4G Remote Control 840MHz Radio & 900MHz Bridge

Communication distance

More than 500 meters

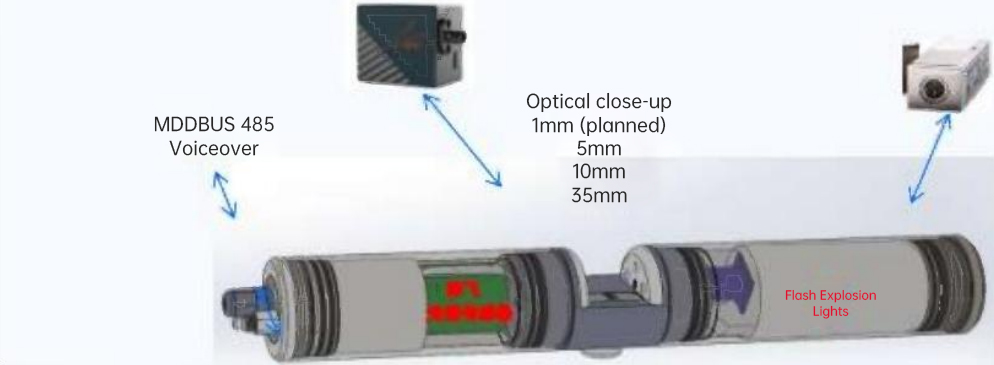

Optical path

5mm optical path

10mm optical path

35mm optical path

Measuring range

0-100mg/L

0-30mg/L

0-15mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±20%

≤±20%

≤±20%

Repeatability

≤±5%

≤±5%

≤±5%

Measuring range

0-100mg/L

0-30mg/L

0-10mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±20%

≤±20%

≤±20%

Repeatability

≤±5%

≤±5%

≤±5%

Measuring range

0-100mg/L

0-35mg/L

0-15mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±15%

≤±15%

≤±15%

Repeatability

≤±5%

≤±5%

≤±5%

Measuring range

0-100mg/L

0-35mg/L

0-15mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±15%

≤±15%

≤±15%

Repeatability

≤±5%

≤±5%

≤±5%

Measuring range

0-140mg/L

0-50mg/L

0-20mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±15%

≤±15%

≤±15%

Repeatability

≤±5%

≤±5%

≤±5%

Measuring range

0-400mg/L

0-160mg/L

0-80mg/L

Measurement accuracy

0.1mg/L

0.1mg/L

0.1mg/L

Standard liquid accuracy

≤±15%

≤±15%

≤±15%

Repeatability

≤±5%

≤±5%

≤±5%
