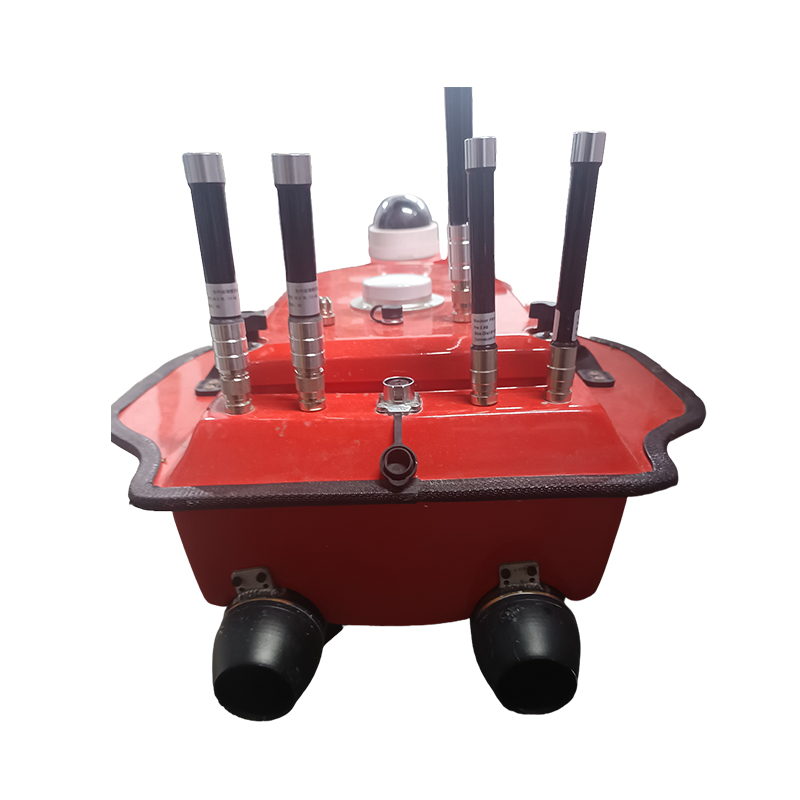

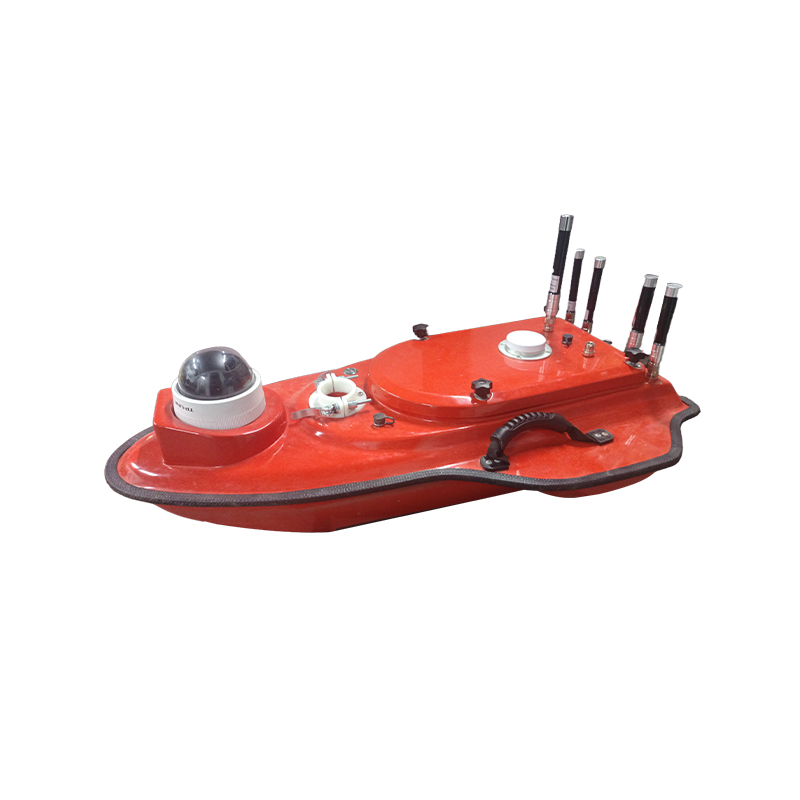

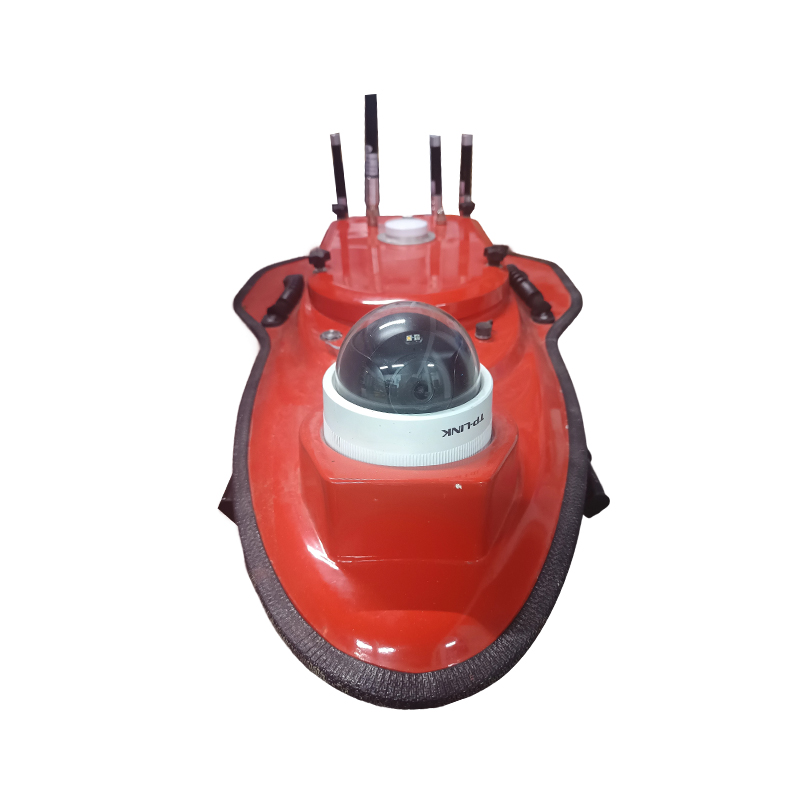

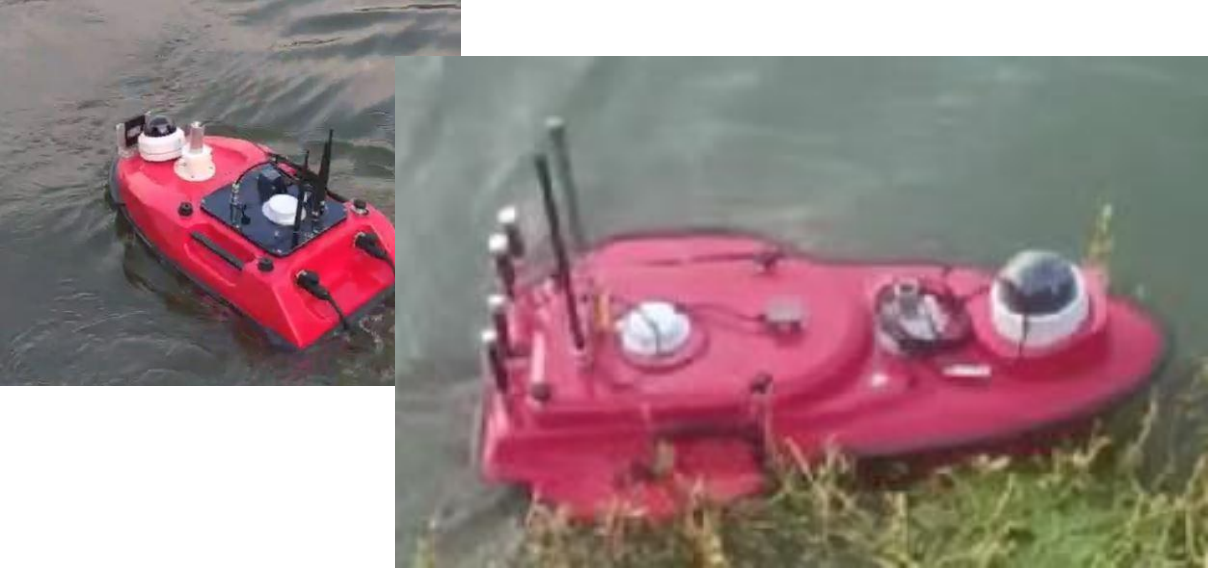

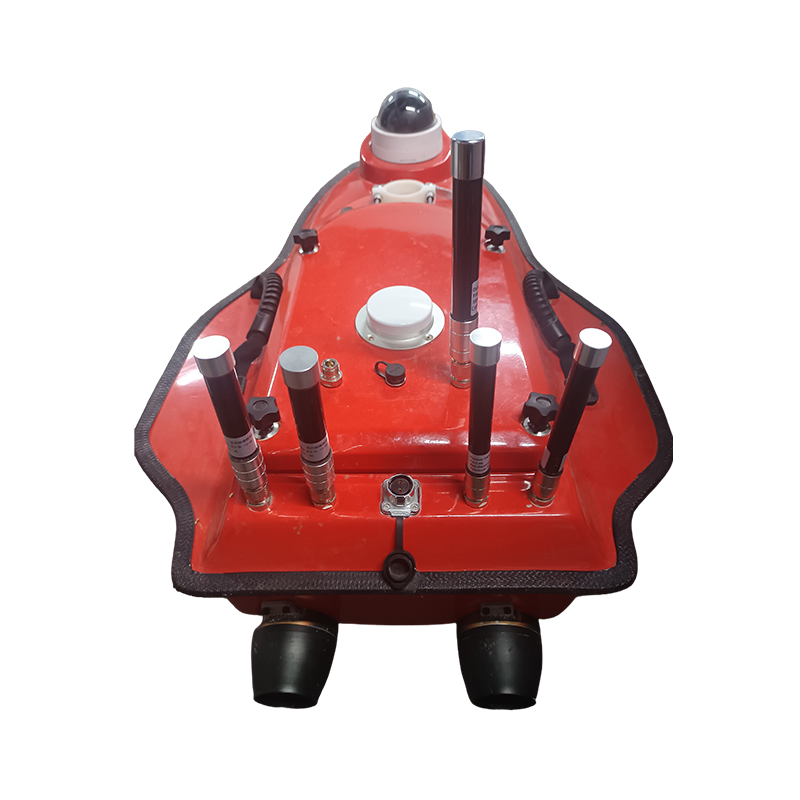

Intelligent Unmanned Boat JWI-970

Hull:

Hull size

970 (length) * 550 (width) * 280 (height) mm

Hull material

Polyester carbon fiber

Hull dead weight

5.5Kg

Maximum load

20Kg

Wind and wave resistance level

3Level wind,2Level Wave

Ship type

MType bottom

ADCPMounting hole diameter

70mm

Waterproof and dustproof

IP66

video

360°Omnidirectional video

Safety

One-touch return, automatic return when low battery

Obstacle Avoidance

Radar wave obstacle avoidance and video observation

Protective measures

The hull is equipped with anti-collision strips,Safe and reliable

Measurement mode

Manual remote control, automatic cruise, adaptive water flow straight line technology

Power:

Power type

Electric

Motor type

Ducted brushless motor

Product Certification

EU safety standardsCECertification

Steering type

Differential steering

Motor power

Single motor maximum 1800W,generally1200W

Motor speed

Maximum7300rpm

Motor installation method

Plug-in design ,Easy to replace

Waterproof grass method

Ducted propeller, waterproof grass cover

Battery specifications

24V 40Ah*2, rechargeable lithium battery,18650battery cells

Battery life

4h@2m/s,Optional up to6h@2m/s

Maximum ship speed

4m/s

Communication:

Base station communication

Radio&network(base station+Mobile Site)

Data Communication

Standard4G&Bridge&radio station

Remote control communication

4G & 840MHzRadio& 900MHzBridge

Video Communications

4G&Bridge

Remote control distance

Smart remote control1kilometer,4GNo restrictions(Depending on network conditions ),Bridge2kilometer

Control Mode

Manual&automatic

Main control is waterproof and dustproof

IP67

Data storage

Local Storage(Multi-channel storage)and remote storage

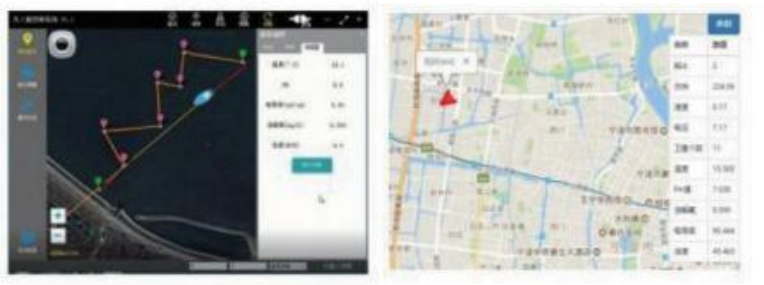

Software

Mission planning, data acquisition and data post-processing functions, AutonomousNavigation, hull parameter control, video display and coordinate conversion functions

Position:

Satellite system

BDS B1/B2, GPS L1/L2, GLONASS G1/G2 , Galileo E1/E5b, QZSS L1/L2

Working Mode

GPS+GLONASS+BDS+GALILEO+QZSSJoint positioning

aisle

184Search Channel

Cold Start

<25s

Initialization time

RTKPositioning accuracy

Plane ±8mm+1ppm, Vertical ±10mm+1ppm

Single point positioning accuracy

Flat1.5m,vertical1.5m

Heading angle accuracy

0.3°

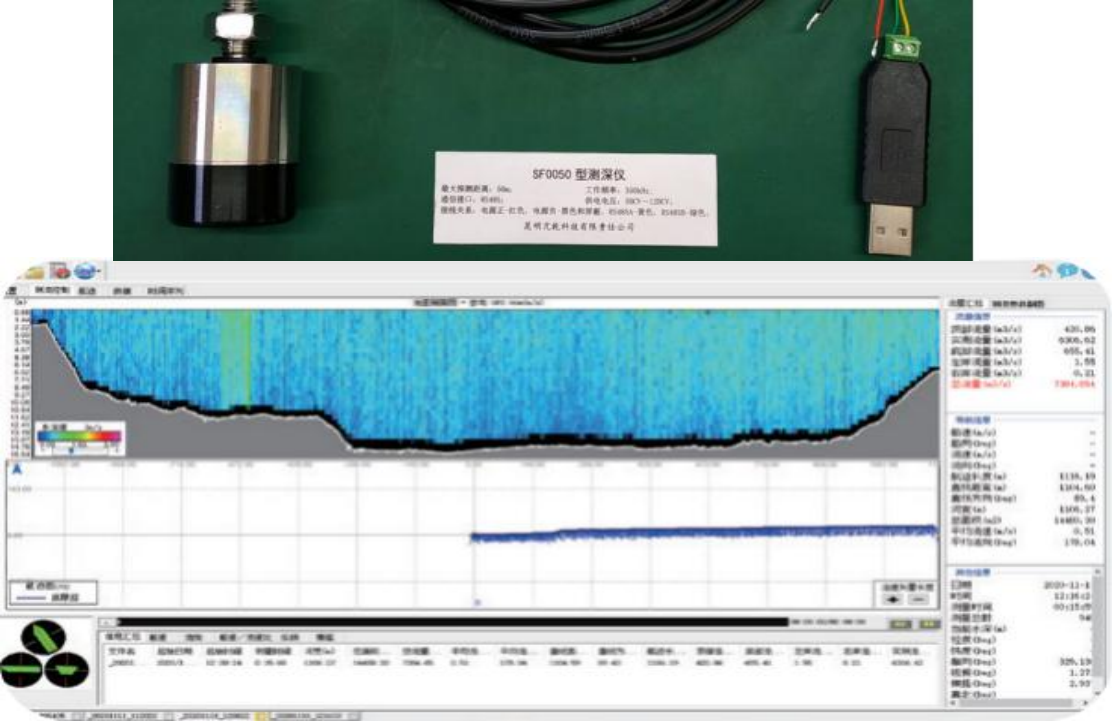

Water depth measurement:

How it works

Single beam echo sounder

Host weight

0.2Kg

Sounding range

0.2-50m

Depth measurement accuracy

±1cm+0.1%h(hWater depth)

Resolution

1cm

Detection pulse broadband

0.01ms-2.5ms

Operating frequency

380KHz

Beam angle

11 ±1°

Supply voltage

7-12V DC

Maximum working depth

500m

Power consumption

1W

Data Interface

RS485

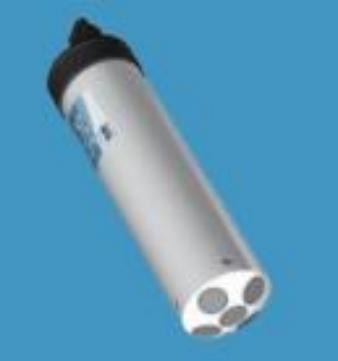

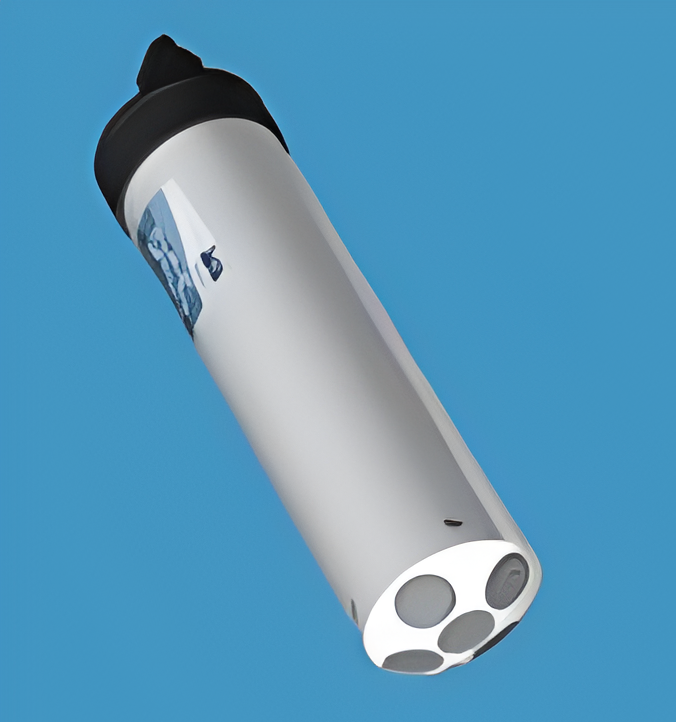

Velocity profile

Section range

0.1-6 m

Flow rate range

±5 m/s

Accuracy

1%±0.002 m/s

Resolution

0.001 m/s

Number of units

Up to 128

Unit size

2.5-30 cm

Data output frequency

1.0 Hz

Bottom tracking

Depth range

0.1-6 m

Accuracy

1%±0.002 m/s

Resolution

0.001 m/s

Depth measurement

scope

0.1-6.5 m

Accuracy

1% ±0.005 m

sensor

Temperature sensor

 Resolution: ±0.01 °CAccuracy: ±0.5 °C

Compass/tilt sensor

 Range: ± 180° Pitch/Roll Accuracy: ± 1°Heading: 0-360°, Heading accuracy: ±2°

transducer

total

5, 3.0 MHz

Beam tilt

25°

Beamwidth

3º

bandwidth

25%
