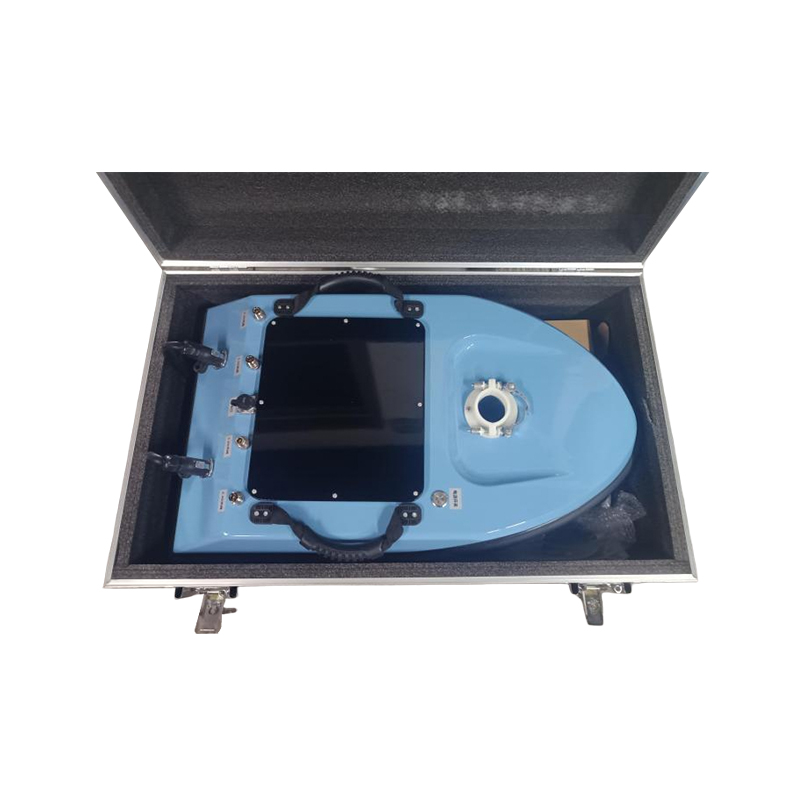

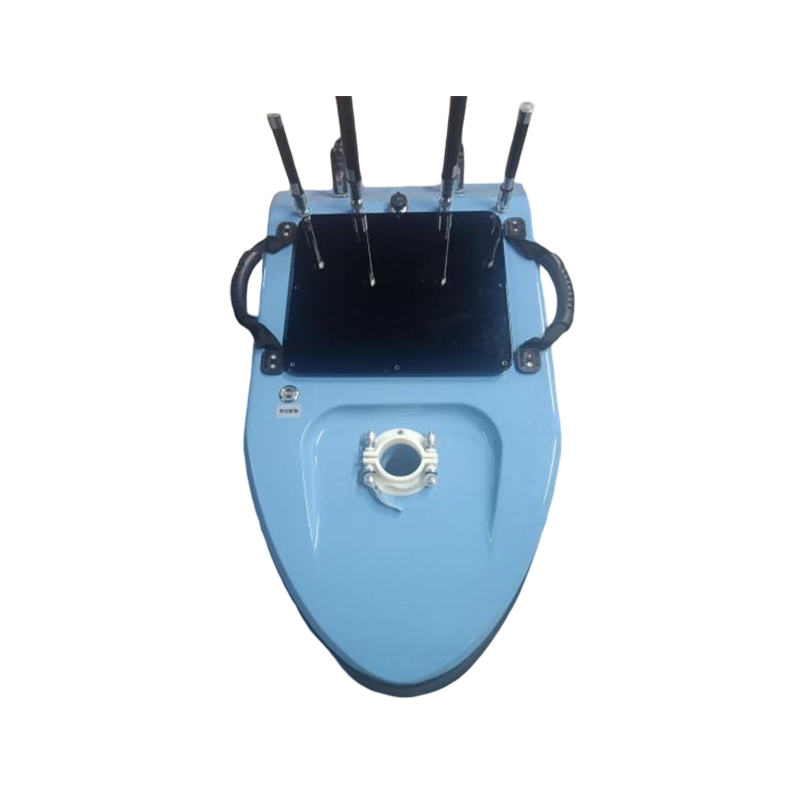

Intelligent Bathymetric Unmanned Vessel JW-801

Hull:

Hull size

820 (length) * 550 (width) * 280 (height) mm

Hull material

Polyester carbon fiber

Hull dead weight

5.8Kg

Maximum load

20Kg

Wind and wave resistance level

Level 2 wind, level 2 wave

Ship type

M-type bottom

ADCP mounting hole diameter

55mm

Waterproof and dustproof

IP66

Communication:

Base station communication

Radio & Network (Base Station + Mobile Station)

Data Communication

Bridge & Radio

Remote control communication

2.4G Remote Control 840MHz Radio & 900MHz Bridge

Communication distance

More than 500 meters

Velocity profile

Section range

0.1-6 m

Flow rate range

±5 m/s

Accuracy

1%±0.002 m/s

Resolution

0.001 m/s

Number of units

Up to 128

Unit size

2.5-30 cm

Data output frequency

1.0 Hz

Bottom tracking

Depth range

0.1-6 m

Accuracy

1%±0.002 m/s

Depth measurement

Scope

0.1-6.5 m

Accuracy

1% ±0.005 m

Sensor

Temperature sensor

Resolution: ±0.01°C
Accuracy: ±0.5°C

Compass/tilt sensor

Range: ± 180° Pitch/Roll Accuracy: ± 1° Heading: 0-360°; Heading Accuracy: ± 2°

Transducer

Total

5个，3.0 MHz

Beam tilt

25º

Beamwidth

3º

Bandwidth

25%
