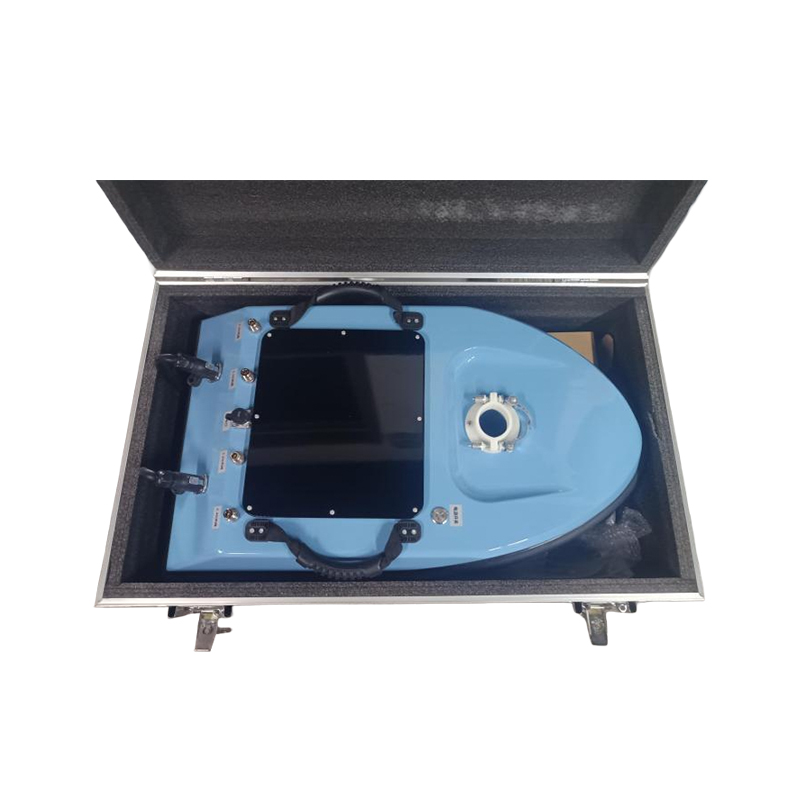

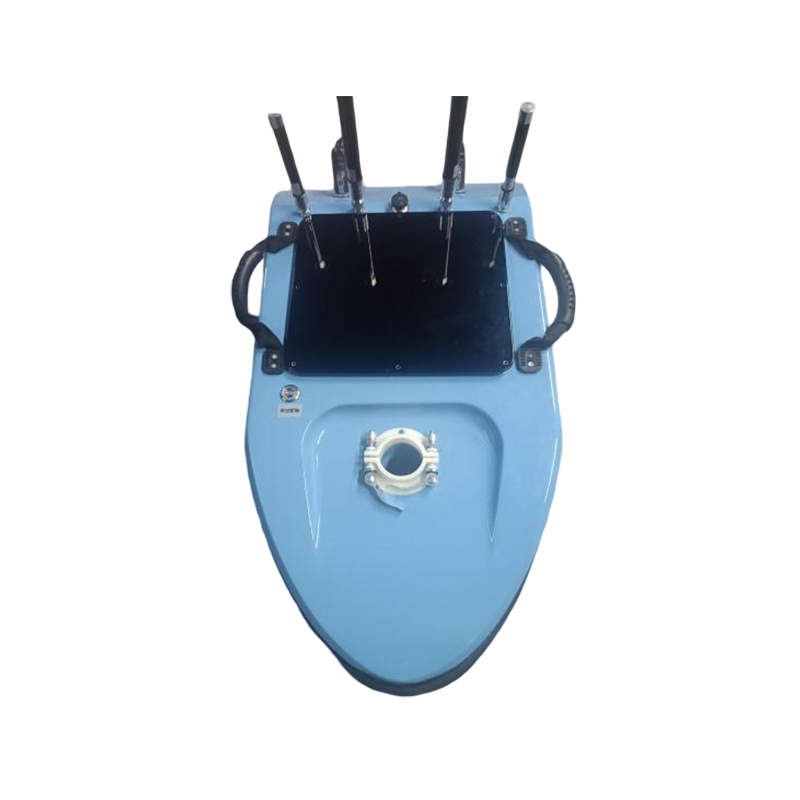

Intelligent Bathymetric Unmanned Vessel JW-802

Hull:

Hull size

820 (length) * 550 (width) * 280 (height) mm

Hull material

Polyester carbon fiber

Hull dead weight

5.8Kg

Maximum load

20Kg

Wind and wave resistance level

Level 2 wind, level 2 wave

Ship type

M-type bottom

Depth sounder installation hole diameter

55mm

Waterproof and dustproof

IP66

Communication:

Base station communication

Radio & Network (Base Station + Mobile Station)

Data Communication

Bridge & Radio

Remote control communication

2.4G Remote Control 840MHz Radio & 900MHz Bridge

Communication distance

More than 500 meters

Depth measurement

How it works

Single beam echo sounder

Sounding range

0.2-50m

Depth measurement accuracy

±1cm+0.1%h (h is water depth)

Operating frequency

380KHz

Beam angle

11± 1°

Average power consumption

1.5W

Data Interface

RS485

Position:

Satellite system

BDS B1/B2 、GPS L1/L2 、GLONASS
G1/G2 、Galileo E1/E5b 、QZSS L1/L2

Working Mode

GPS+GLONASS+BDS+GALILEO+QZSS joint positioning

Aisle

184 Search Channel

RTK positioning accuracy

Plane ±8mm+1ppm, Vertical ±10mm+1ppm

Single point positioning accuracy

1.5m horizontally, 1.5m vertically
