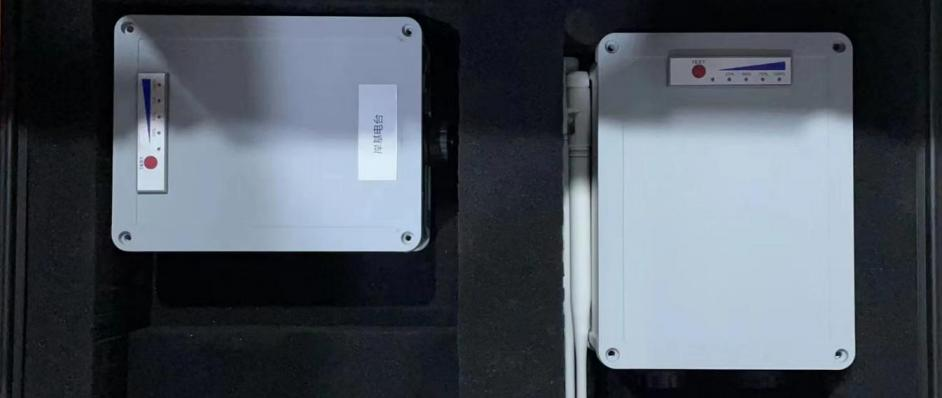

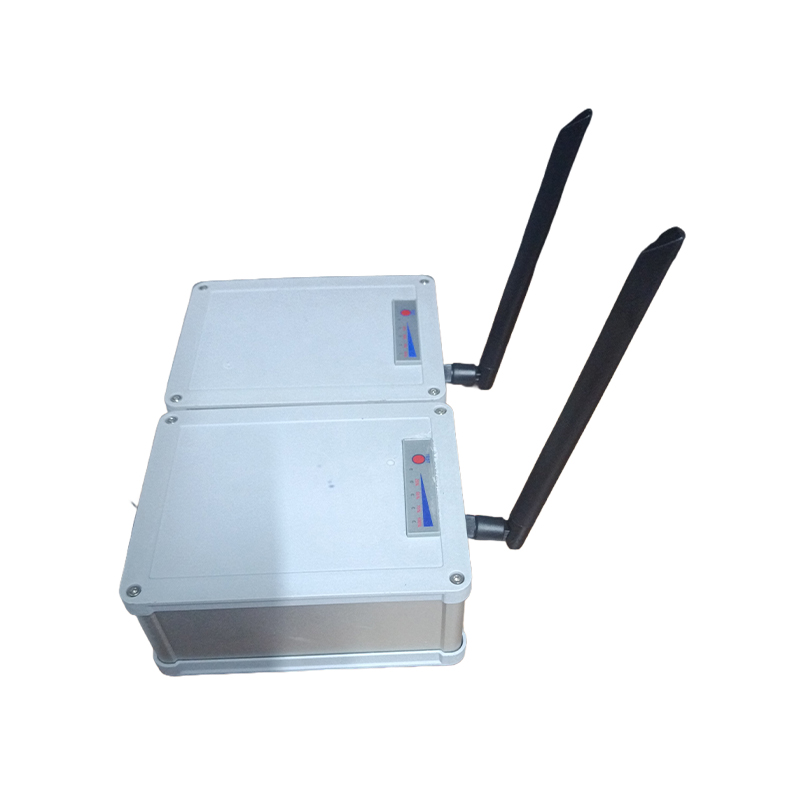

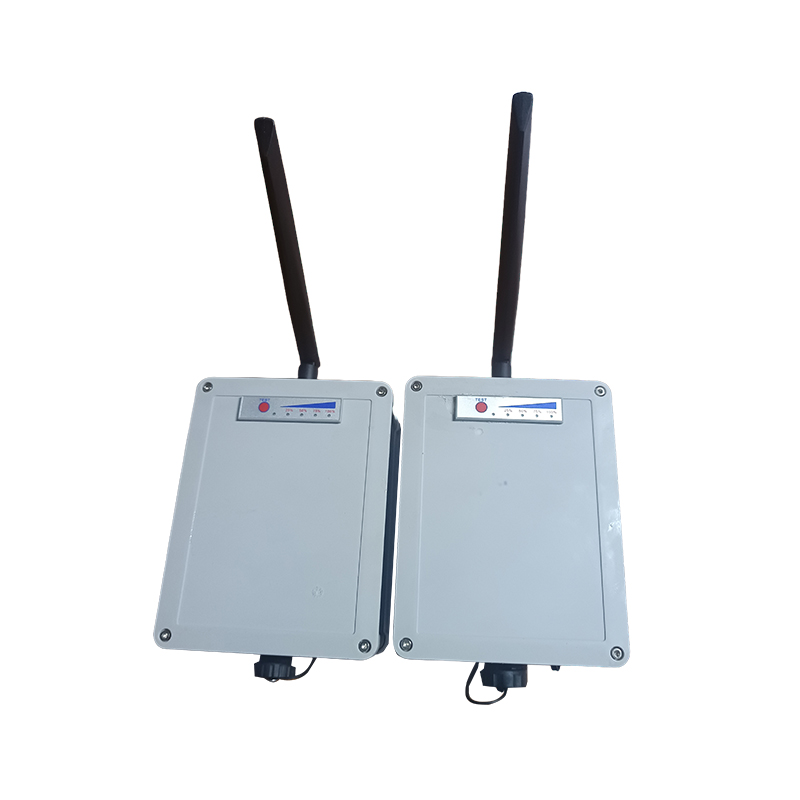

The JWI-P920 communication radio is a wireless remote transmitter designed specifically for the RS5 miniature underway ADCP current meter. With a transmission range of over 500 meters, it overcomes the RS5's shorter Bluetooth communication range (less than 100 meters). Combined with the RS5's unparalleled portability and ease of use, it is an ideal tool for flow measurement in small and medium-sized rivers and water resources surveys.
Technical Parameters
Communication protocol: IEEE 802.11ah |
Operating frequency band: 902MHz - 928MHz |
Communication distance: > 500rice |
Network port: 100M Ethernet port |
Serial port: TTLLevel, fixed115200 Baud rate |
Battery specifications: rechargeable lithium battery, DC12V 8AH |
Battery life: 4 - 6Hour |
Protection level: IP67 |
Dimensions: 150mm*115mm*70mm |
