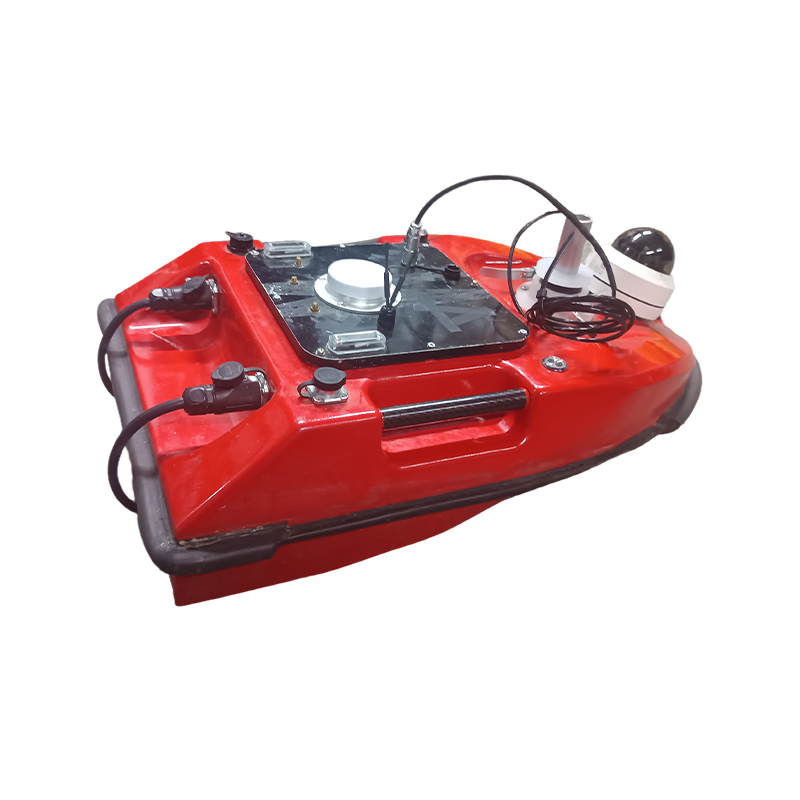

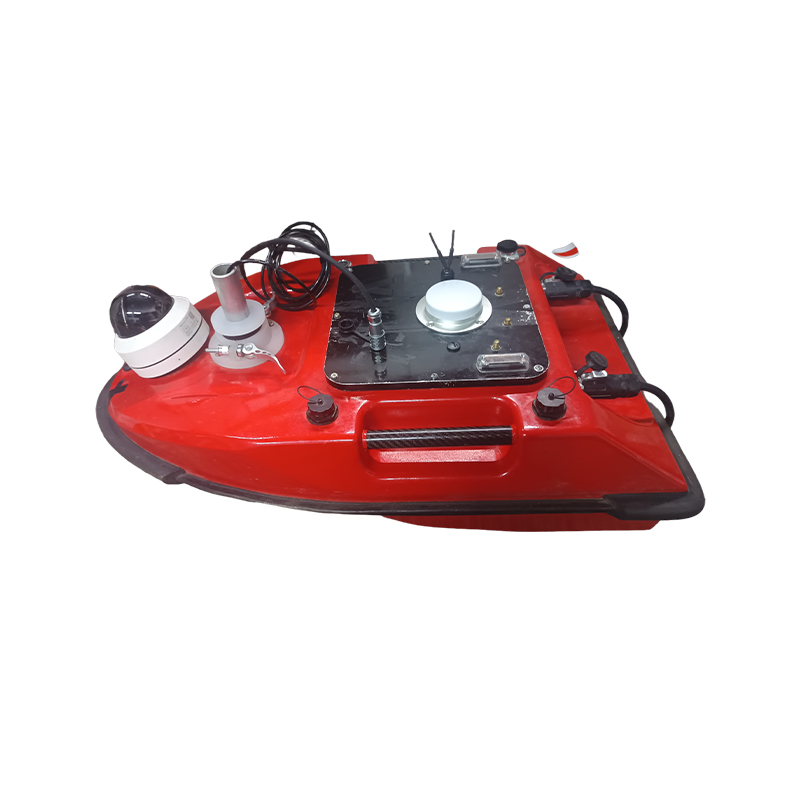

Intelligent Unmanned Boat JWI-750

 Hull :

 Hull size

 750 (length) * 450 (width) * 220 (height) mm

 Hull material

 Polyester carbon fiber

 Hull weight and load

 4Kg, maximum load: 10Kg

 Wind and wave resistance level

 2 Level wind ,2 Level Wave

 Ship type

 M Type bottom

 Sensor mounting aperture

 55mm

 Waterproof and dustproof

 IP66

 Protective measures

 The hull is equipped with anti-collision strips , Safe and reliable

 Application Mode

 Manual remote control

 Communication:

 Communication methods

 Bridge & Radio ( base station + Mobile Site )

 Data and remote control communications

 900MHz Bridge, 433MHz & 2.4GHz Radio

 Remote control distance

 Smart remote control 1 kilometer , Bridge >500 rice

 Data storage

 Local storage and remote storage

 Position:

 Satellite system

 BDS B1/B2, GPS L1/L2, GLONASS G1/G2, Galileo E1/E5b, QZSS L1/L2

 Working Mode

 GPS+GLONASS+BDS+GALILEO+QZSS Joint positioning

 Aisle

 184 Search Channel

 Cold Start

 <25s

 Single point positioning accuracy

 Flat 1.5m ,vertical 1.5m

 RTK Positioning accuracy

 Plane ± 8mm+1ppm , Vertical ±10mm+1ppm (Optional)

 Velocity profile

 Section range

 0.1-6 m

 Flow rate range

 ±5 m/s

 Accuracy

 1%±0.002 m/s

 Resolution

 0.001 m/s

 Number of units

 Up to 128

 Unit size

 2.5-30 cm

 Bottom tracking

 Depth range

 0.1-6 m

 Accuracy

 1%±0.002 m/s

 Resolution

 0.001 m/s

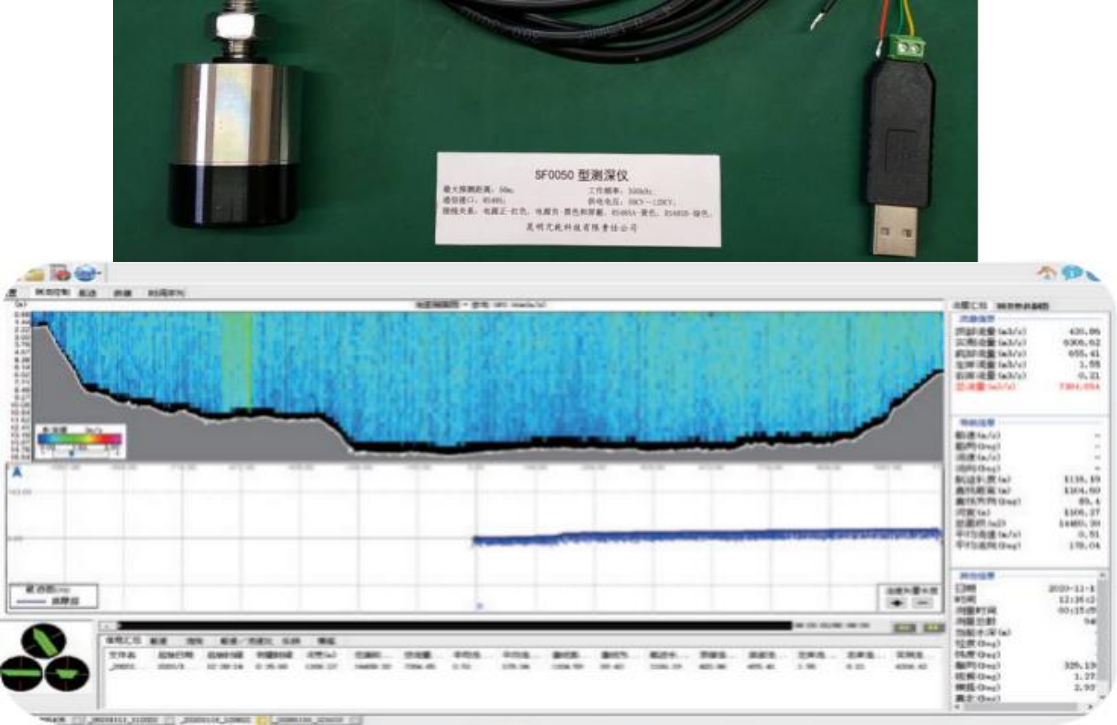

 Depth measurement

 Scope

 0.1-6.5 m

 Accuracy

 1% ±0.005 m

 Sensor

 Temperature sensor

 Resolution: ±0.01 °C Accuracy: ±0.5 °C

 Compass/tilt sensor

 Range: ± 180° Pitch/Roll Accuracy: ± 1° Heading: 0-360°, Heading accuracy: ±2°

 transducer

 Total

 5, 3.0 MHz

 Beam tilt

 25°

 Beamwidth

 3º

 Wireless Communications

 Operating frequency

 900MHz

 Communication distance

 >500 meters
